Gen 2 & Gen 4 Haldex ECU Repair Service by Mail Order

£179.04 / £149.20 Ex. VAT

Availability: In stock

✔ Fast 48 – 72 hours turnaround (see details below)
✔ VAT Invoice & Tracking link with every order
✔ 100% 5 star reviews on Google, Facebook & eBay
✔ Experienced & knowledgeable Haldex tech support

Feel free to contact us if you’re unsure what you need

Please scroll down for Haldex Repair Instructions

*

If you’re sending a Gen 4 unit in for repair, we suggest you read our Gen 4 Haldex Troubleshooting Guide before ordering our repair service.

Please follow the steps below to order our Gen 2 & Gen 4 Haldex controller repair service:


Step 1

Enter your vehicle registration in the field above and click “Add to Basket”

Step 2

Click “View Basket” and then “Proceed to Checkout”. Fill out all of your contact information and payment details and click “Place Order”.

Step 3

Print out your order confirmation email and place it in the package with your Haldex controller unit.

Finally send your Haldex controller via Royal Mail Special Delivery to the following address:-

Auto Fault Finder
The Railway Exchange
Weston Road
Crewe
CW1 6AA

Processing Time:-

We aim to process & repair all Haldex units the same day they are received. They are then shipped back the same day too by Royal Mail Next Day Special Delivery (1pm). Upon dispatch by us, you will receive a VAT invoice and a Royal Mail Tracking code by email.

On average, you should receive your Haldex unit back within 48 – 72 hours of you sending it to us. We are very busy during the winter months, and sometimes it might take an extra day or two so please bear with us!

Non-Faulty Haldex Controller Units:-

If your Haldex Controller unit is deemed to be not faulty, we will thoroughly clean and re-coat the PCB board to ensure it will not corrode in the future. We will clean up the case to ensure a successful bond and repair any corrosion holes or replace the front cover if required, before resealing the unit correctly to ensure it is water tight. Finally, we will issue you a refund minus a diagnostics fee and return postage cost. It will then be sent back to you via Royal Mail Next Day Special Delivery (1pm).

Non-Repairable Haldex Controller Units:-

If your Haldex Controller unit is beyond repair, we will call you to discuss your options below:

Option 1: Offer you a brand new replacement board

Option 2: Issue you a refund minus a diagnostics fee and return postage cost. It will then be sent back to you via Royal Mail Next Day Special Delivery (1pm)

Further Information:-

Find out more about our Haldex ECU repair service here:- ECU Testing and Repair Service or view our Frequently Asked Questions

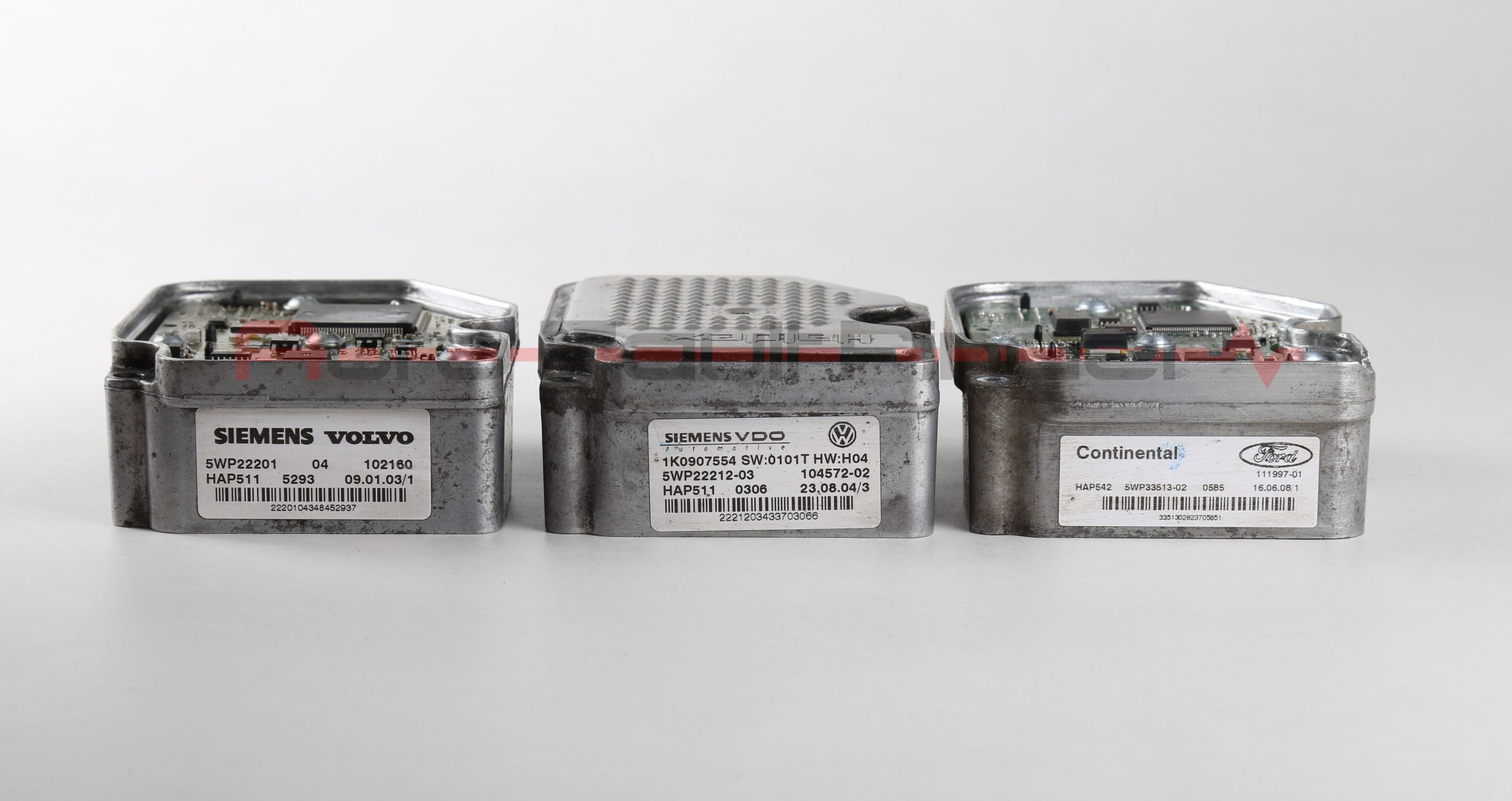

Examples of some of the part numbers we can repair are:-

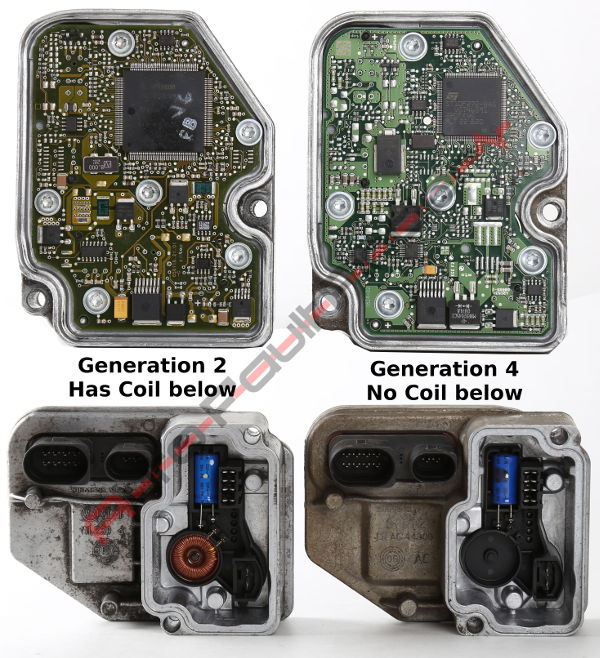

Generation 2 = 1K0907554 1K0907554A 1K0907554B 1K0907554C 1K0907554F 1K0907554K 1K0907554L 1K0525130 1K0525130A 1K0525130B 1K0525130C 1K0525130F 1K0525130L

While early Gen 2 units were only marked VW hap511 5wp22202 but are a 1k0907554

Generation 4 = 0BR907554 – 0BR907554A – 0BR907554B – 0BR907554C – 0BR598554 – 0BR598554A – 0BR598554B – 09N907554A – 09N598554 – 09N598554A – 0AY907554C – 0AY907554D – 0AY907554E – 0AY598554 – 0AY598554A – 0AY598554B – 0AY598554C
0BS907554 – 0BS907554A – 0BS907554B – 0BS907554C – 0BS598554 – 0BS598554A

WE DO NOT REPAIR GENERATION 1 HALDEX ECUS

Common fault codes:-

02248 – Valve for Controlling Clutch Operating Angle (N373) – 014 Defective – Intermittent
00448 – Haldex Clutch Pump (V181) – 002 – Lower Limit Exceeded – Intermittent
01155 – Clutch – 003 – Mechanical Failure – Intermittent
00448 – Haldex Clutch Pump (V181) – 011 – Open Circuit – Intermittent
02248 – Valve for Controlling Clutch Operating Angle (N373) – 012 – Electrical Fault in Circuit
01155 – Clutch – 003 – Mechanical Failure – Intermittent
01324 – Control Module for All Wheel Drive (J492) 004 – No Signal/Communication
65535 – Internal Control Module Memory Error 00-10 – Intermittent
16347 – Control Module – EEPROM error – 014 – Defective – Intermittent
00003 – Control Module 014 – Defective – Intermittent / Control module faulty sporadic

02248 – Valve for Controlling Clutch Operating Angle (N373) 014 – Defective – Intermittent
00448 – Haldex Clutch Pump (V181) 014 – Defective – Intermittent
02249 – Sensor for Oil Pressure and Oil Temperature (G437) 004 – No signal OR 014 – Defective – Intermittent
00003 – Control module faulty sporadic – 014
01324 – All Wheel Drive Control Module -J492- 013 – Read Fault Memory sporadic
65535 – Internal Control Module Memory Error 00-10 – Intermittent
01324 – Control module for ALL WHEEL DRIVE (J492) 004 – No signal/communication – intermittent.
00003 – Control Module 014 – Defective – Intermittent / Control module faulty sporadic
16347 – Control Module – EEPROM error – 014 – Defective – Intermittent

Weight 400 g
Dimensions 10 × 6 × 4 cm
